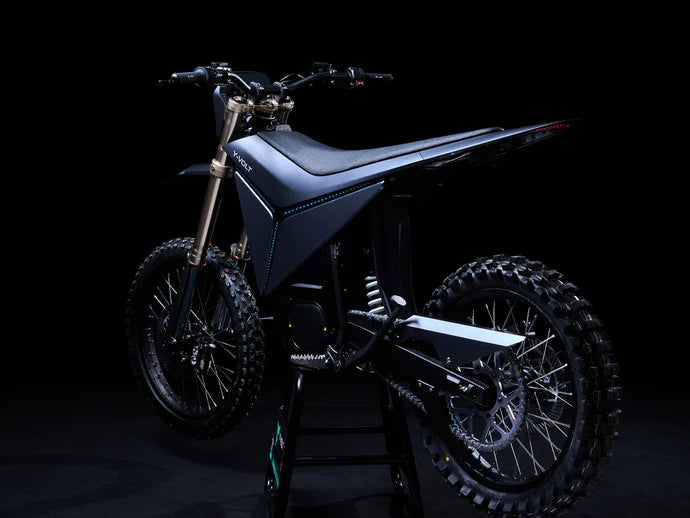

Y-Volt Surge V

Size (L*W*H): 2000*830*1170mm
Weight (With battery): 204 lbs

Max Load: 265 lbs
Suitable Age: 18~55 years old

Permanent Magnet Synchronous Motor
Peak Power@35kW @48 HP
Rated Power@15kW

4.32 kWh, 97.2 V Greenway® Ternary Lithium Battery Samsung-50s Cells
Continuous discharge current: 154.32 A
Charge Time: 3 hours

15 A, 110/240 V - 50/60Hz
Output Voltage: DC 113.4V
Output Current: 15A

96V Sine Wave Vector Controller

Triple-Beam Forged  Aluminum Alloy Frame

Front: 80/100-19 49M TT NHS CST
Rear: 100/90-18 56M TT NHS CST

Primary Drive System: Gearbox
Secondary Drive System: Chain

520 pitch, 180 links, O-ring, off-road use

700 ft-lbs on the rear wheel

RS-485+CAN

FASTACE
Front: 830 mm total length, 50 mm out tube, 38 mm stanchions, 245 mm travel, hydraulic damping with adjustable rebound and high-/low-speed compression.
Rear: 300 mm rear wheel travel, 85 mm shock stroke, coil-spring with hydraulic and gas damping, adjustable compression and rebound

Front: 4-piston caliper, 220mm hydraulic disc
Rear: 4-piston caliper, 220mm hydraulic disc

27.3º

∅28.6*∅22.1*810 Aluminum alloy

Full LED high & low beams

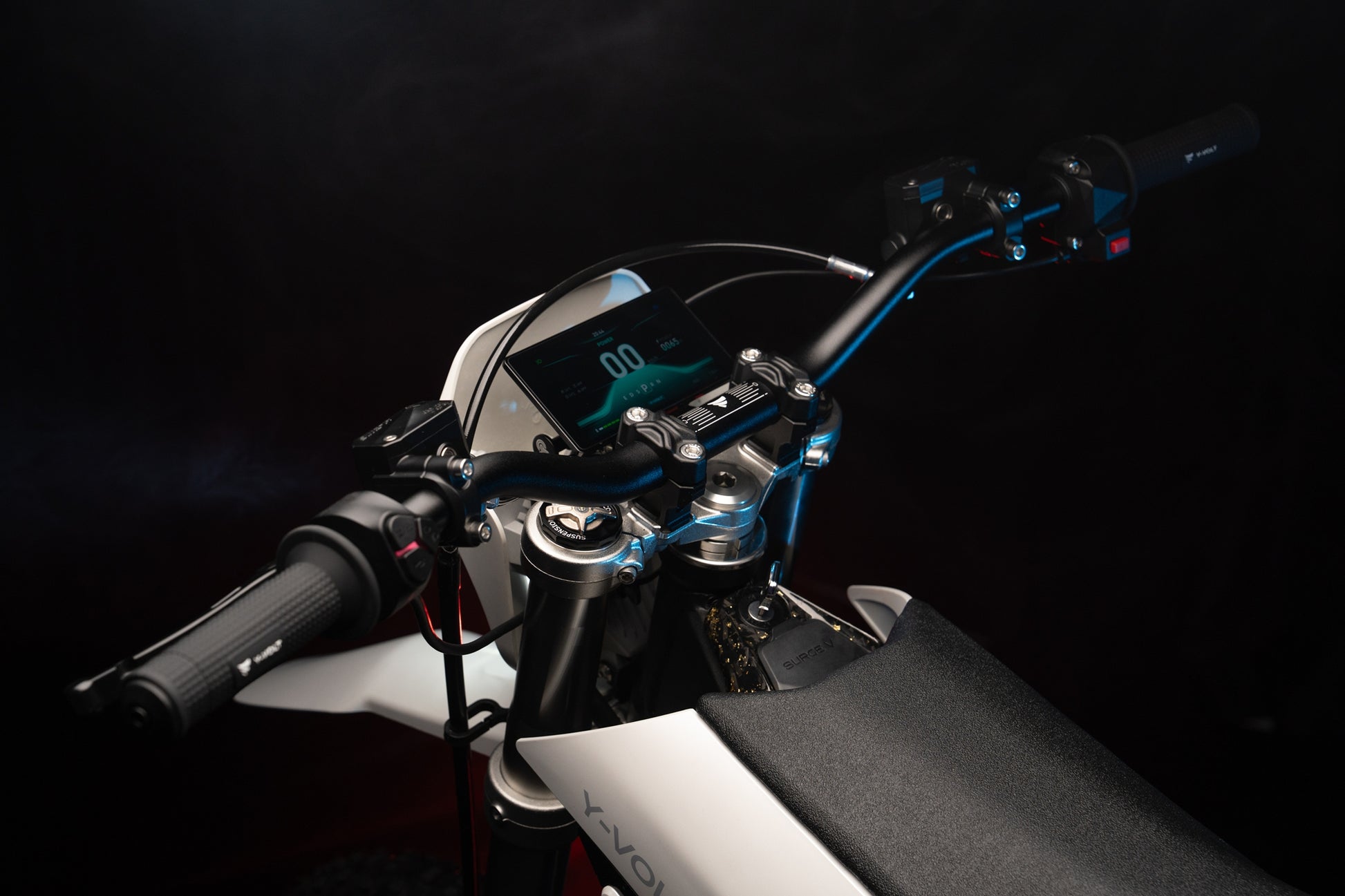

HD Smart Multi-Function Display

Tip-Over Sensor: Yes
Kickstand Sensor: Yes
NFC: Yes
Night Riding Mode: Yes
Vehicle Lock Cover: Carbon Fiber
Rear Handle Bar: Carbon Fiber
APP: Bike GPS positioning, cycling trajectory tracking,
parameter customization (Launching in April)
